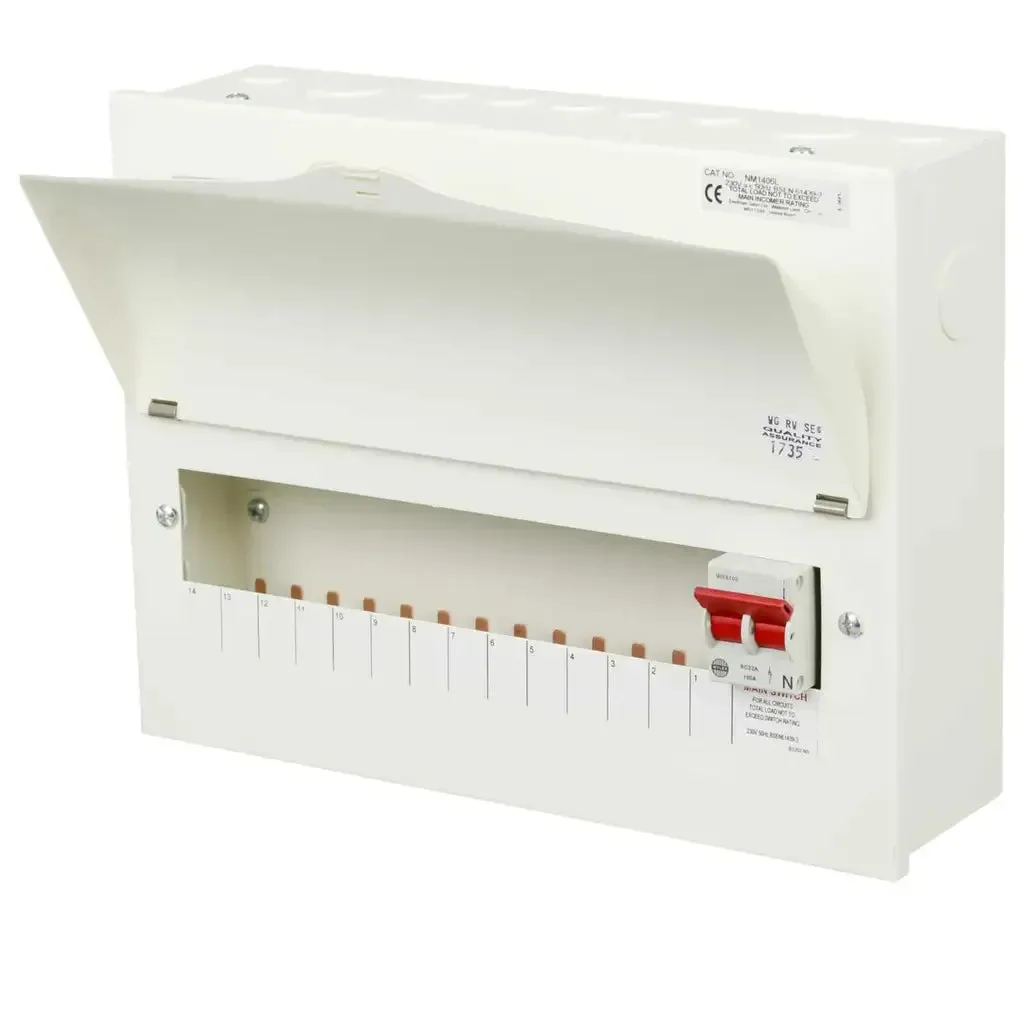

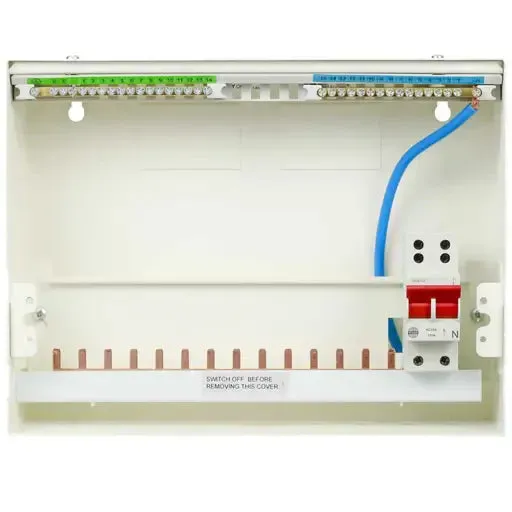

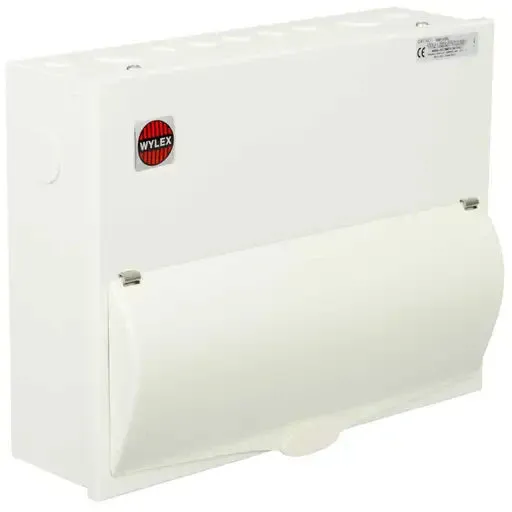

14W Main switch only consumer unit. Includes a 100A main switch with twin line and neutral supply terminals and a 100A fixed busbar assembly comes complete with 1 x NMT2SPD3W/1 and 10 NHXS1B rcbos. Constructed from a full metal enclosure with curved visor and temporary locking facility.
-100A incoming isolator fitted
-Amendment 3 compliant
-Non-combustible enclosure
Specifications:
Brand | Wylex |
Compliance | BSEN61439-3 |
Current Rating | 100A |
Depth | 121mm |
Dimensions | (H)261mm (W)343mm (D)121mm |
Guarantee | 1 Year |
Height | 261mm |
Incoming Device | 100A Isolator |
Material | Metal |
Mounting | Surface |
Number of Modules | 16 |
Number of Outgoing Ways | 14 |
Packaging Types | Each |
Product Range | NM Metal |
Surge Protection Fitted | No |
Surge Protection Ready | No |
Unspsc V18 | 39121110 |
Voltage Rating | 230V |
Weight | 4.1kg |
Width | 343mm |
IP Rating | IP2X |
