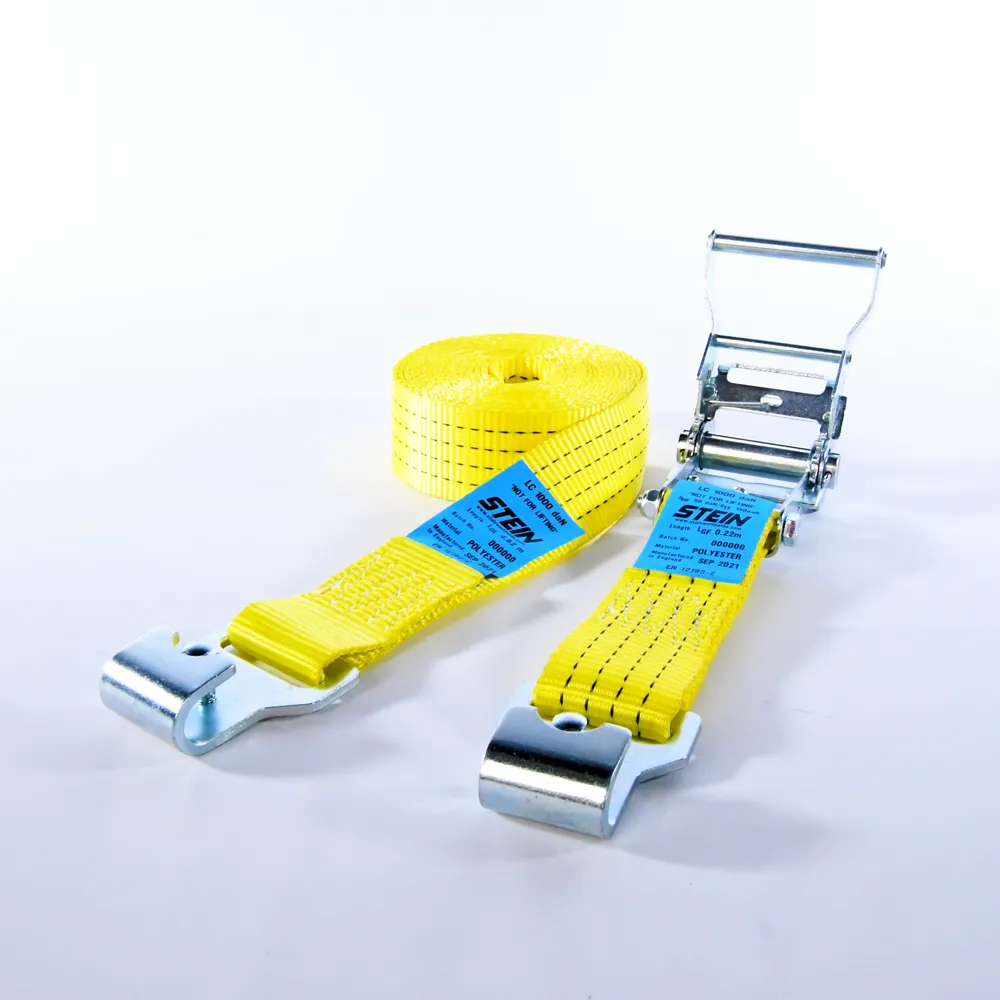

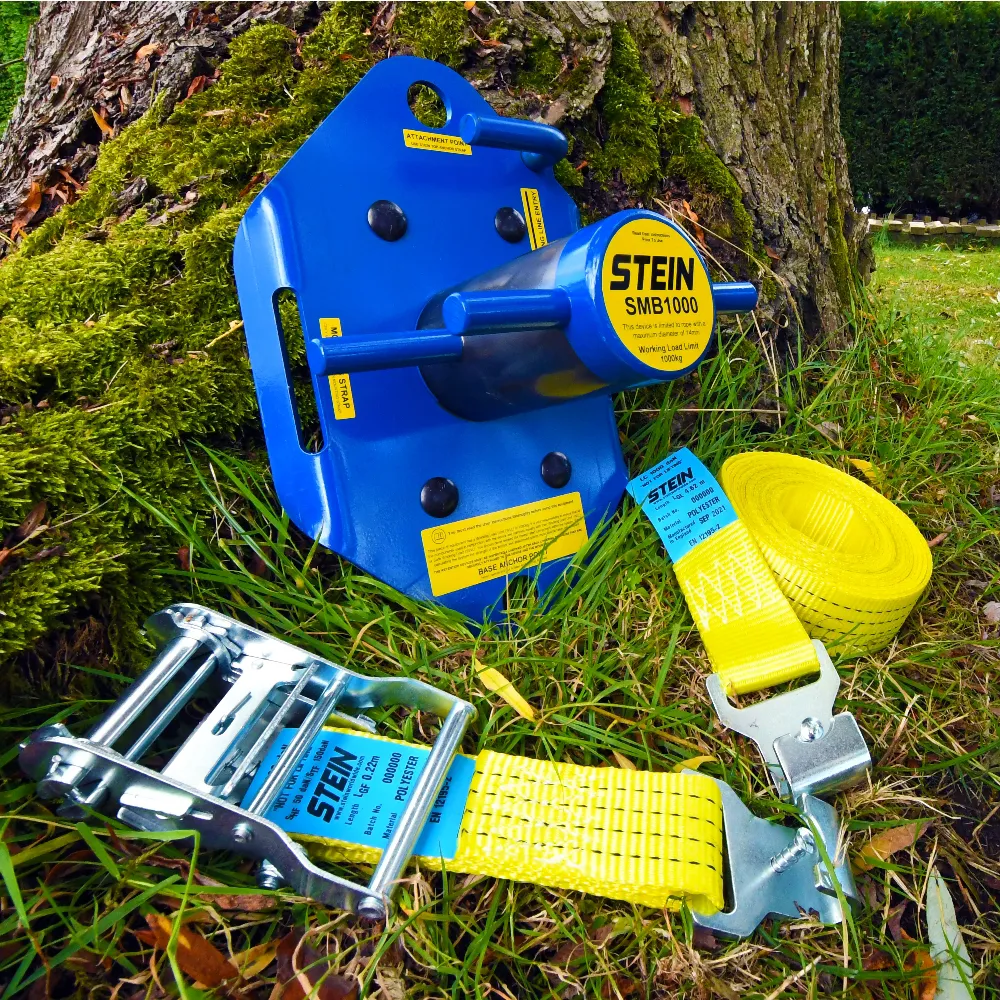

Ratchet Strap Specifications:

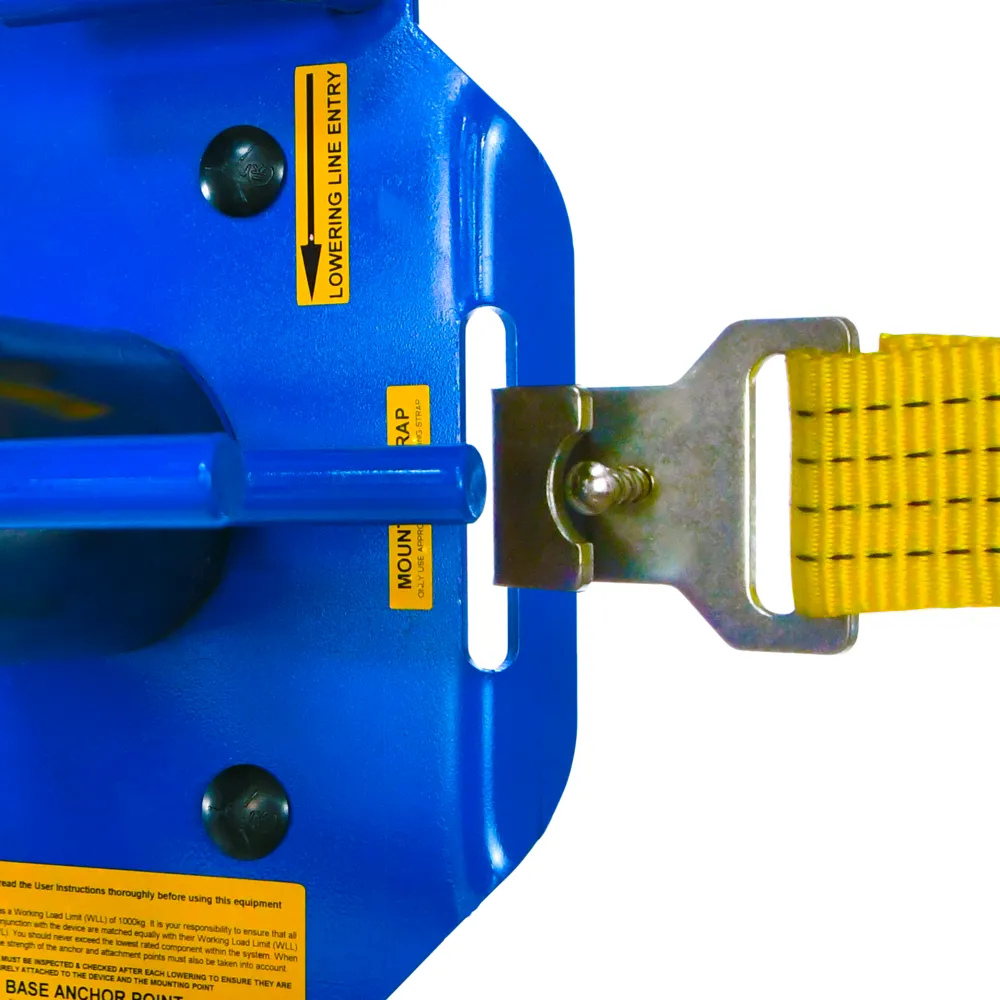

Supplied with a specially designed ratchet strap fitted with Carbon Steel hooks with Keeper Pins to prevent the mounting hooks from detaching from the device when not under tension. The webbing is made from a high tenacity 50mm wide polyester yarn and is UV resistant with a 6000kg breaking strength.

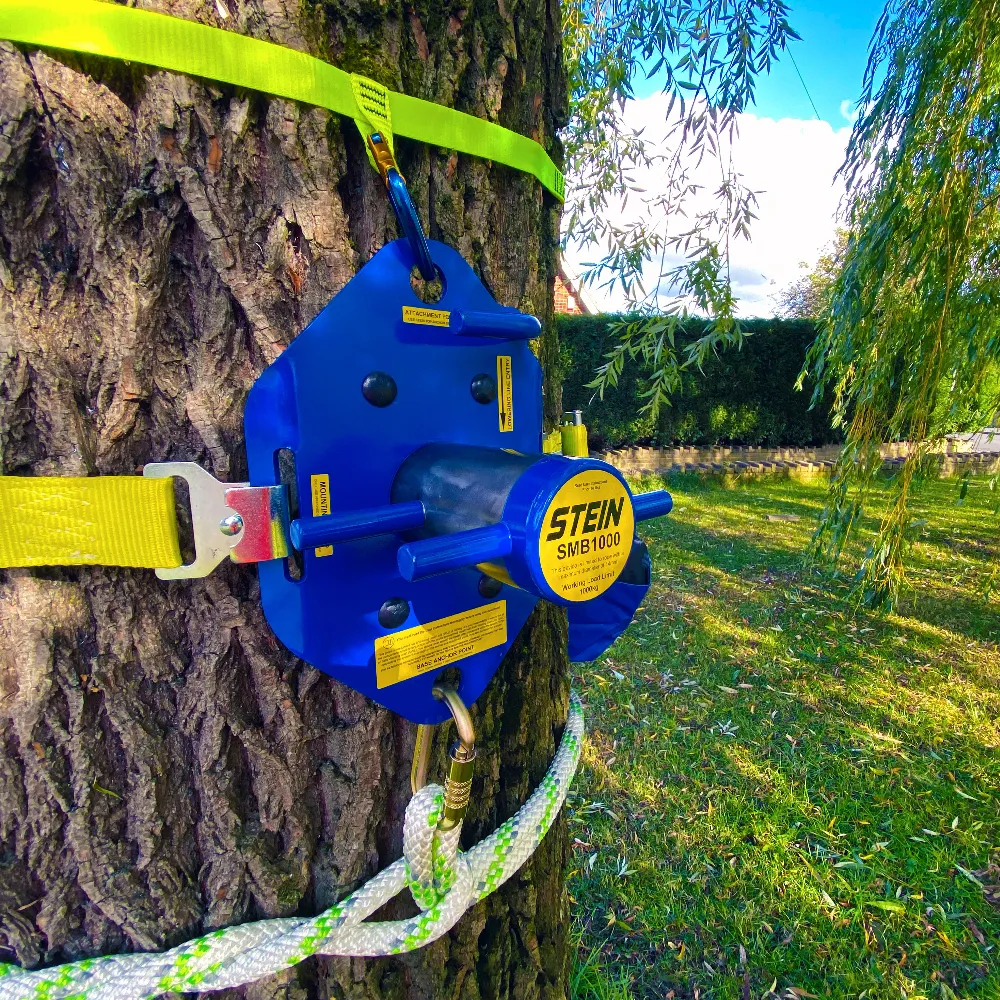

This strapping system allows the device to be fitted to the tree with a diameter of up to 145cm.
The ratchet meets the requirements of the European Load Restraint Legislation Standard EN12195-2:2001 which requires the buckle to have a lashing capacity (LC) of 1000daN. This capacity is stamped on the ratchet together with a label for full traceability. The breaking strength (BS) of 2000Kg is also shown to indicate the maximum load that can be applied to the buckle before failure.

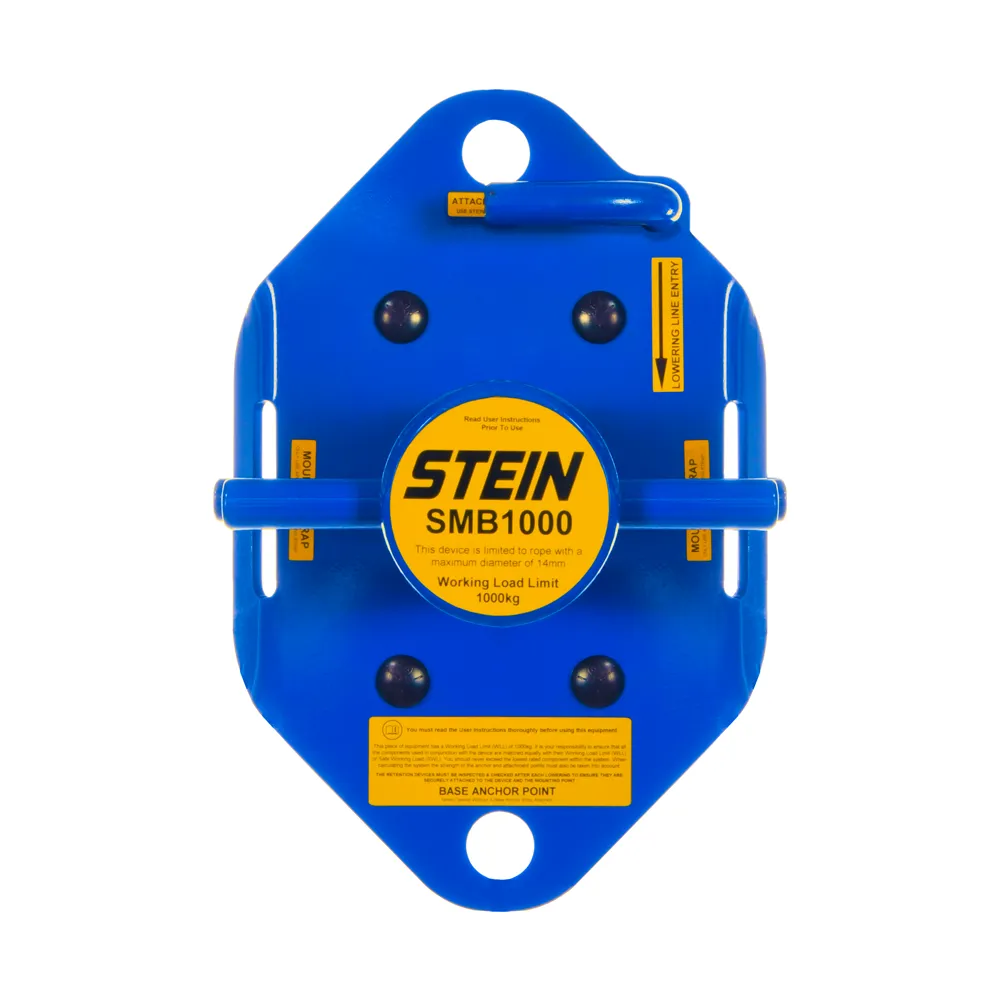

STEIN SMB1000 SPECIFICATIONS:
- Working Load Limit:1000kg (WLL) refer to the manual

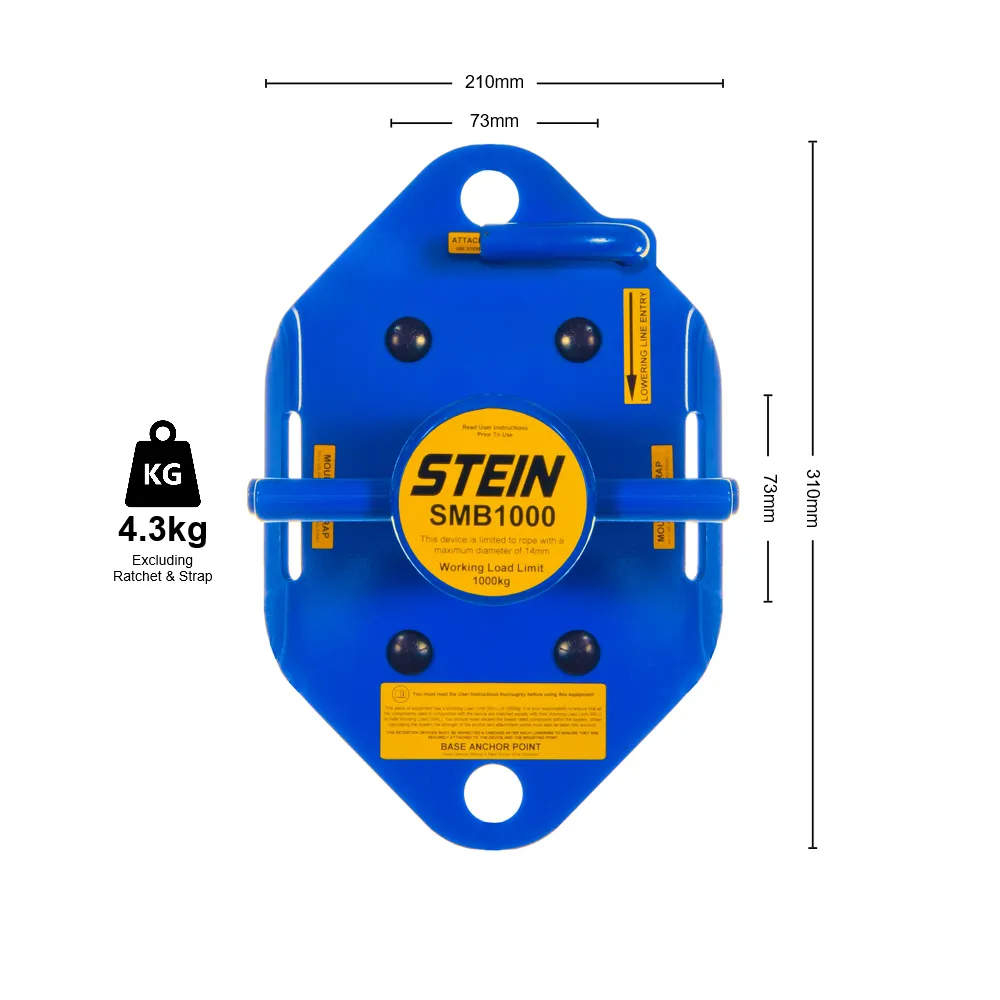

- Dimensions:210mm (w) x 310mm (h)
- Bollard Dimension:73mm diameter x 140mm (l)
- Materials:Back Plate 5mm Steel
- Fairleads:15mm Solid Bar
- Body Finish:Powder coated
- Bollard Finish:Lacquered with Rust Prevention

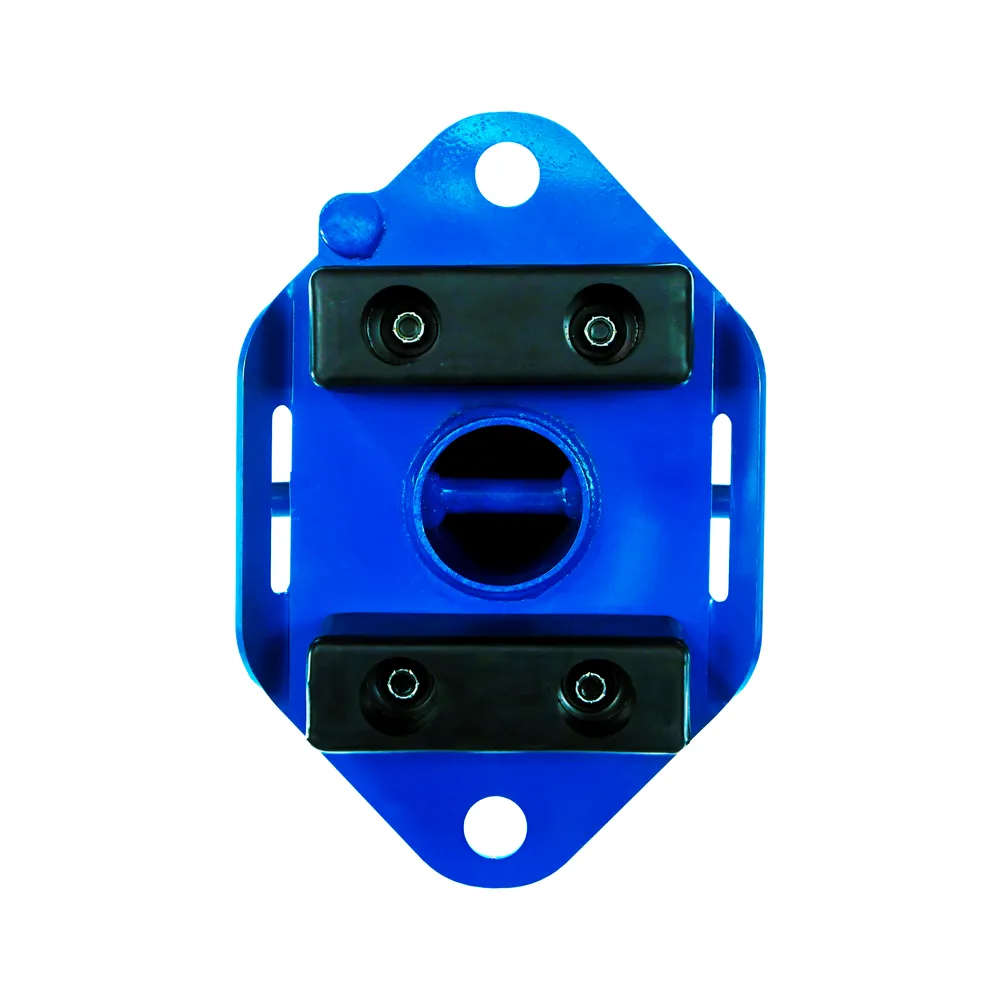

- Rubbers:148mm (l) x 50mm (w) x 50mm (h)
- Rubber Material:SBR/NR rubber
- Rubber Hardness:70 medium/hard (Shore A Scale)

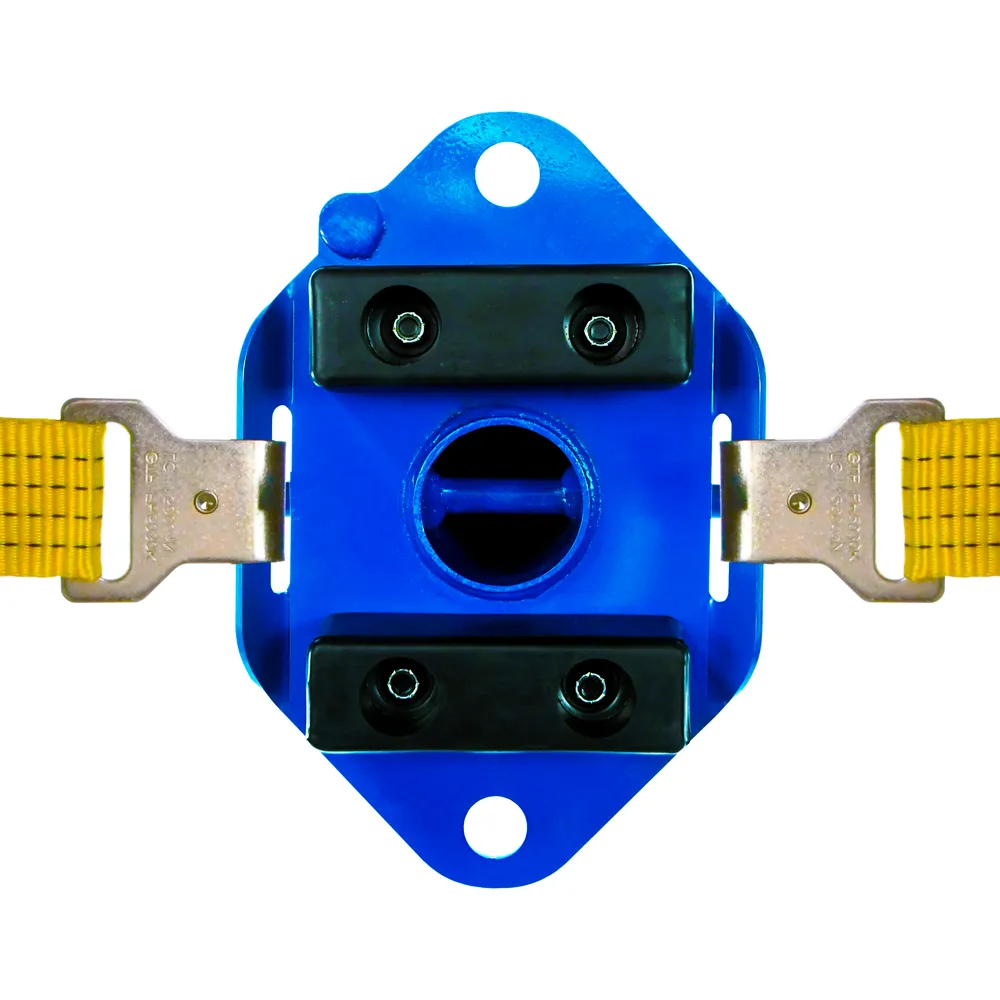

- Strapping System:Ratchet Handle with tail
- Webbing length:4.65m (5.0m combined with Ratchet Handle)
- Weight:4.4kg (excluding Ratchet Strap),5.8kg (Including Ratchet Strap)
