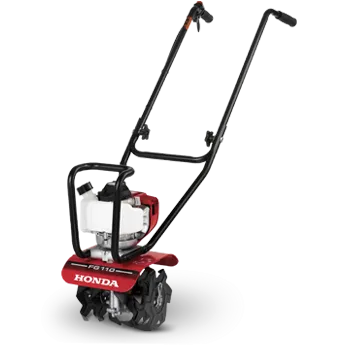

Features:

• Max tilling width (mm):230
• Max tilling depth (mm):203
• Wheels:Rear transport
• Side Discs:Not available
• Foldable Handle:Yes
• Height Adjustment Handle:Not available
• Swing Handle:Not available
• Counter-rotating tines:Not available



Technical Specification:

• Max tilling width (mm) - 230
• Max tilling depth (mm) - 203
• Forward speeds - 1
• Forward tool rotation speed (rpm) - 182 rpm
• Dimension (L x W x H) (mm) - 1,175 x 365 x 958
• Dry weight (kg) - 13
• Rotors/tines supplied - 4 x 6 tooth hoeing tines
• Wheels - Rear Transport
• Border edger - Optional
• De-thatcher / scarifier - Optional
• Aerator - Optional
• Engine - 4-stroke OHC
• Engine model - GX25T
• Engine displacement (cc) - 25
• Engine net power (kW/rpm) - 0.61/6,000
• Fuel tank capacity (Litres) - 0.57
• Engine oil capacity (Litres) - 0.8
• Starter - Recoil
• Drive clutch - Automatic - centrifugal
• Transmission - Worm gear
• Sound pressure at operators ears (dB(A)) - 83.5
• Guaranteed sound power level (dB(A)) - 93
• Vibration (m/sec) - 3.7
• Foldable handle - Yes
